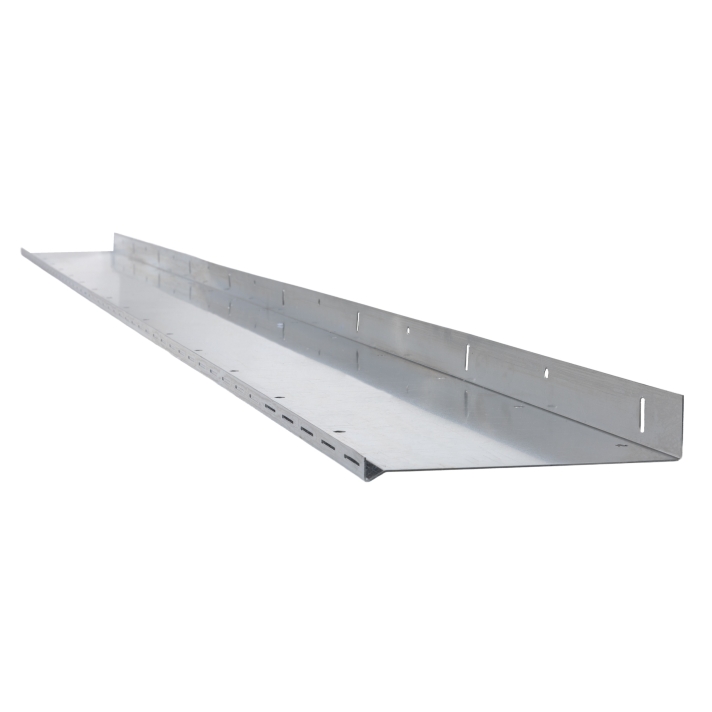

Aluminium Base Rail x 2.5mtr with Drainage Holes
Brand: SPSenvirowallAluminium Retaining Bead (Item 1096) is a 2m pressed AlMgSi 0.5 F22 profile designed for use within M-system façade installations, typically with mineral wool insulation boards. It provides horizontal retention when used together with the Aluminium Connector (1092) and fixed through pre-formed holes at prescribed anchor centres. Suitable for securing consecutive layers of insulation within compatible façade systems.
The Aluminium Retaining Bead (Item 1096) is a façade system component manufactured from AlMgSi 0.5 F22 alloy in a pressed blank finish. The profile is 2,000mm long with a nominal material thickness of 1.7mm (+0.2/-0mm). It incorporates a 24mm-wide connecting bar and pre-drilled holes to enable mechanical fixing as part of an M-system façade build-up.
It is intended for use predominantly with mineral wool insulation panels and is installed horizontally to secure insulation layers.
Features and Characteristics
-
Material: AlMgSi 0.5 F22, pressed blank
-
Length: 2,000mm
-
Thickness: 1.7mm (+0.2/-0mm)
-
Width of connecting bar: 24mm
-
Hole spacing: 75mm ±5mm
-
Number of holes per 2m length: 26
-
Packaging: 25 pieces per carton
Intended Application
The retaining bead forms part of the M-system installation method and is used horizontally to retain insulation boards. Each new insulation layer must be connected to the previous layer using PVC retaining strips in combination with this profile and other system components.
Compatible and required complementary products include:
-
Aluminium Connector (Art. 1092)
-
Impact or screw anchors
-
Spacers (Art. 1071–1075)
Installation Considerations
The retaining bead is fixed horizontally through its pre-drilled holes. System guidance states that three anchors per linear metre must be used.
Installation considerations include:
-
Ensuring the substrate surface is even; unevenness may be compensated for using spacers.
-
Following system manufacturer regulations and system-specific approvals.
-
Using the retaining bead together with the corresponding Aluminium Connector (1092) as part of the specified assembly.
-
Connecting each insulation layer to the preceding one using the designated PVC retaining strips.
Additional Notes
All installation and performance requirements must follow the approvals associated with the specific façade system in which this bead is used. System manufacturer guidelines take precedence where additional details are required beyond those listed in the technical sheet.
Technical Data
| Property | Value |
|---|---|
| Material | AlMgSi 0.5 F22, pressed blank |
| Length | 2,000mm |
| Thickness | 1.7mm (+0.2/-0mm) |
| Connecting bar width | 24mm |
| Hole spacing | 75mm ±5mm |
| Number of holes per 2m | 26 |
| Packaging | 25 pieces/carton |
| Complementary products | Aluminium Connector (1092); Impact/screw anchor; Spacers (1071–1075) |
