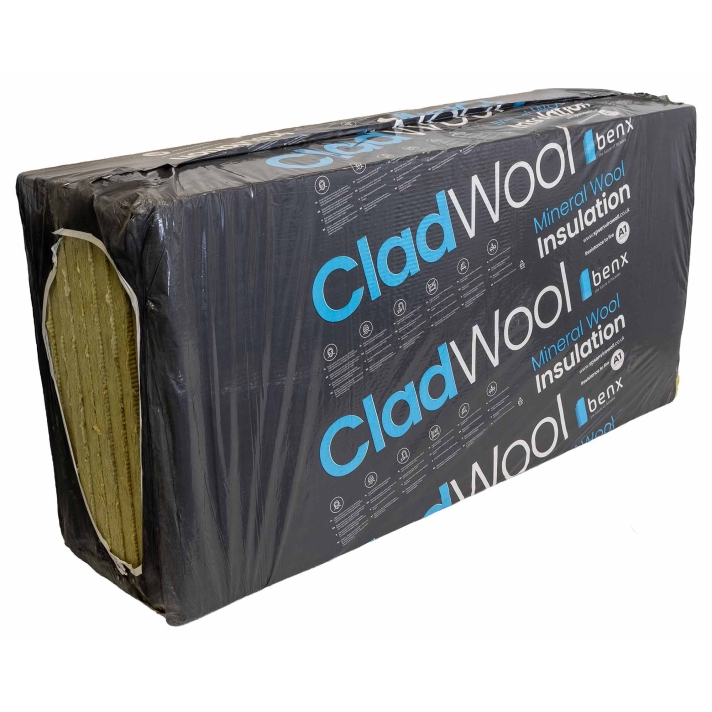

Benx 30mm CladWool HD Mineral Wool 1200*600 7.2m2 / 10pcs PACK

Cladwool HD is a stone wool slab manufactured for thermal, acoustic and fire insulation across a range of internal and external building applications. The product provides a declared thermal conductivity coefficient of ≤0.037W/mK and meets the requirements of EN 13162:2012+A1:2015 for mineral wool insulation products. It is supplied in a range of dimensions suitable for various wall and structural build-ups.

The reaction to fire classification is Euroclass A1, indicating non-combustibility based on the declared classification. Predicted densities range between 130–140kg/m3. Thermal resistance values vary by thickness, with declared resistances ranging from 0.50m2K/W at 20mm to 4.05m2K/W at 150mm.

Technical Characteristics

Declared product characteristics include:

• Thickness tolerance: Class T5 with tolerances of -1mm/+3mm or -1%/+3mm.

• Dimensional stability: DS(70,90) ≤1.0 under conditions of 10°C and 90% relative humidity.

• Compressive stress: CS(10) 40kPa at 10% deformation.

• Tensile strength perpendicular to faces: ≥10.0kPa for 20–49mm thickness; ≥15.0kPa for 50–150mm.

• Short-term water absorption: WS ≤1.0kg/m2.

• Long-term water absorption: WL(P) ≤3.0kg/m2.

• Water vapour transmission: MU1.

• Air flow resistivity: AFr NPD.

• Point load at 5mm deformation: NPD.

• Reaction to fire: Euroclass A1.



Dimensions

Cladwool HD is supplied in the following formats:

• Length: 1000mm or 1200mm

• Width: 600mm

• Thickness range: 20–150mm



Intended Applications

Applications stated within the technical data sheet include:

• External and partition walls insulated using an ETICS system

• External monolithic, prefabricated and brick walls

• Jamb insulation

• Fire insulation of attics (Euroclass A1)

• Acoustic and fire insulation of staircases (Euroclass A1)



Installation Considerations

Cladwool HD must not be installed in certain environmental conditions. The sheet specifies:

• Do not apply if frost is forecast within 24 hours.

• Do not apply in wet conditions.

• Do not apply in temperatures below +5°C or above 25°C.

• Avoid installing on elevations in direct sunlight or on substrates that are hot.

Coverage rates are described as approximate and not adjusted for wastage or uneven substrates.

Handling and Other Information

The document advises users to ensure the product is suitable for the intended application through prior testing if required and provides standard cautionary notes. No additional performance classifications, test reports or certification numbers are listed beyond the EN 13162 reference and Euroclass declaration.
