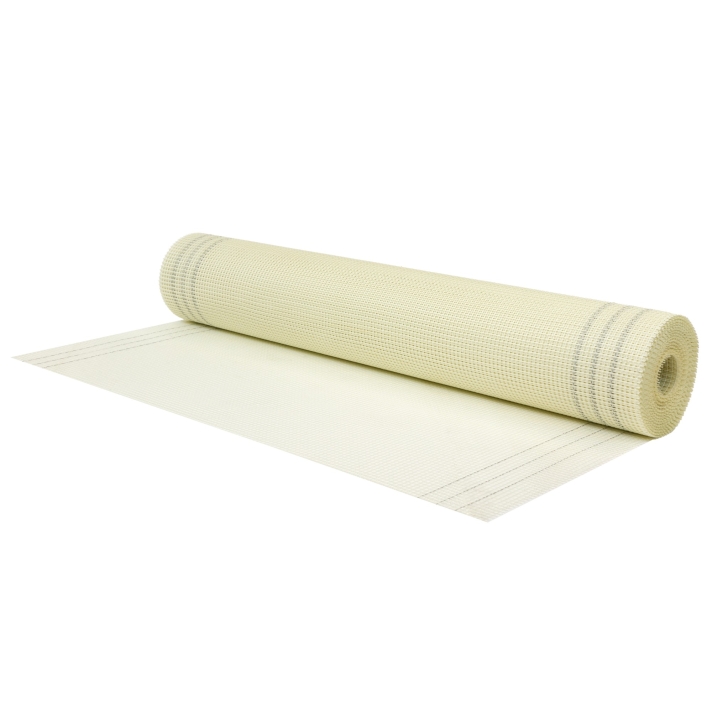

Mesh 7x7 190g 1mtr x 50mtr (PREMIER L)

The High Performance Mesh ESPS/M104 is a premium-grade reinforcement fabric engineered to deliver durability, stability, and compliance within external thermal insulation composite (ETIC) systems. Manufactured from E-glass and approved under ETAG, this reinforcement mesh has been specifically developed for the formation of surface reinforcement and the extensive repair of cracked plaster on façades. It combines strength, resilience, and ease of installation, making it a trusted solution for professional installers.

One of the defining features of ESPS/M104 is its high tear resistance. In its delivered condition, the mesh demonstrates a warp tear strength of 2000 N/5 cm and a weft tear strength of 2200 N/5 cm. Even after exposure to alkaline conditions, it retains at least 50% of its initial strength, ensuring long-term performance in challenging environments. This makes it a particularly robust choice for reinforcement applications where durability under stress is critical.

The product is manufactured with a balanced mesh size of 6 x 6 mm, ensuring even coverage and structural stability when embedded into reinforcement compounds. Its basis weight of 160 g/m² (±5%, according to DIN EN 12127) provides the optimum balance between strength and handling flexibility. Supplied in rolls of 1 metre width and 50 metres length, each roll delivers 50 m² of coverage. Alternative dimensions are available upon request, providing flexibility for different project requirements.

In application, ESPS/M104 is easy to handle and install. The reinforcement fabric must be laid over the entire surface, embedded without creases or bubbles in the upper third of the open reinforcement compound, then levelled out. To ensure structural continuity, overlaps of at least 10 cm must be maintained at fabric joints. Around critical building openings such as windows and doors, additional diagonal reinforcement with fabric arrows or lintel corner brackets is required. These measures help minimise the risk of cracking and ensure structural consistency throughout the façade.

The mesh is alkali-resistant, plasticiser-free, non-slip, and highly tensile, which further enhances its safety and performance during installation. Available in orange or white, the mesh not only performs to high technical standards but also provides visual contrast for ease of application. Its resistance to alkalinity ensures long service life when embedded within standard reinforcement mortars.

From a sustainability perspective, SPS Envirowall promotes the re-use and responsible recycling of its product range, including mixing tubs, tool carriers, and rubbish containers. The plastic tubs, lids, and metal wire handles associated with its packaging are fully recyclable, contributing to responsible waste management on-site.

Storage and handling of the ESPS/M104 are straightforward. Rolls should be stored upright in dry conditions between -10 °C and +50 °C, away from direct sunlight. These measures help preserve the mesh’s integrity until use.

Typical applications of the ESPS/M104 include:

• Formation of surface reinforcement in ETIC systems

• Repair and stabilisation of cracked plaster on façades

• Reinforcement around structural openings (windows, doors)

• Use in compliance with WTA leaflet 2-4 (Edition 08.2014/D) for the rehabilitation of plaster and crack-related issues



In summary, the ESPS/M104 High Performance Mesh offers installers a reliable, ETAG-approved reinforcement solution that balances strength, durability, and ease of use. Its robust technical characteristics make it suitable for demanding façade applications, ensuring reinforced stability and long-lasting performance.
