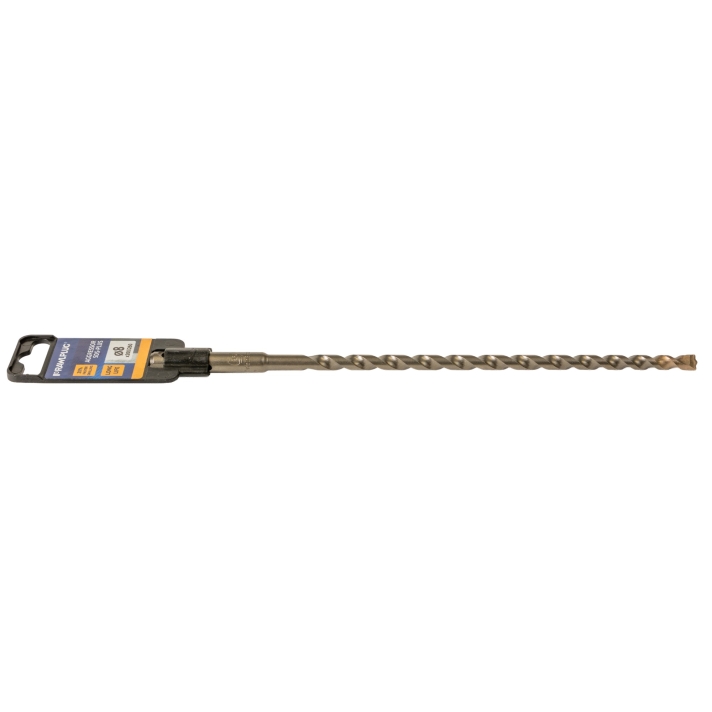

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 200 x 260mm
Brand: RawlplugBranch Stock Availability
- Basildon:
- In Stock
- Newcastle-under-Lyme:
- Low Level
- Scotland:
- Out of Stock
- Wales:
- Low Level
The Rawlplug SDS+ Rebardrill RT-SDSR-8-260 is an SDS+ hammer drill bit manufactured from chromium steel 34CrNiMo6 with a full carbide tip. It is designed for drilling holes in concrete, reinforced concrete, stone and full brick using SDS+ hammer drills under 5kg. The drill bit features a 3-edge carbide tip with a 135° point angle to support accurate hole formation and controlled drilling. Suitable for drilling in concrete and masonry structures where precise hole geometry is required.
Overview
The Rawlplug SDS+ Rebardrill RT-SDSR-8-260 is a power tool accessory intended for use with SDS+ hammer drills weighing less than 5kg. It is manufactured from chromium steel 34CrNiMo6 and fitted with a full carbide tip made from WC-cobalt grade CTM17 BC. The drill bit is designed for drilling in concrete, reinforced concrete, stone and full brick.
Design and Construction
The drill bit incorporates a full carbide tip with three cutting edges and an integrated centring point. The tip is manufactured with a point angle of 135° ±2°. The carbide plate is deeply seated within the drill body to provide a secure mechanical connection between the tip and the steel core.
The flute geometry consists of a fully ground half-round flute. This design provides defined material extraction surfaces intended to assist with the removal of drilling dust during operation. The cylindrical form and axial alignment of the drill bit are intended to support straight hole drilling.
Materials
The drill body is manufactured from chromium steel 34CrNiMo6. The carbide tip is produced from WC-cobalt grade CTM17 BC. The stated hardness of the drill bit is 46–52HRC.
Compatibility and Use
The RT-SDSR-8-260 is compatible with SDS+ hammer drills. It is intended for use in the following substrates:
-
Concrete
-
Reinforced concrete
-
Stone
-
Full brick
The drill bit is designed for drilling applications in concrete and masonry structures. The centring point supports positioning at the start of drilling to reduce movement at commencement.
Certification and Standard
The product is certified to the PGM standard. The drill bit is manufactured in France.
Dimensions and Identification
RT-SDSR-8-260 has a nominal diameter of 8mm and an overall length of 260mm, with a working length of 200mm. It is supplied as a single unit.
Technical Data
| Property | Value |
|---|---|
| Product code | RT-SDSR-8-260 |
| Drill type | SDS+ |
| Diameter | 8mm |
| Overall length | 260mm |
| Working length | 200mm |
| Steel material | Chromium steel 34CrNiMo6 |
| Carbide material | WC-Cobalt Grade CTM17 BC |
| Carbide tip design | Full carbide tip, 3 cutting edges with centring point |
| Tip angle | 135° ±2° |
| Flute design | Fully ground half-round flute |
| Hardness | 46–52HRC |
| Standard | PGM certified |
| Compatible power tools | SDS+ hammer drills under 5kg |
| Suitable substrates | Concrete, reinforced concrete, stone, full brick |
| Country of manufacture | France |
